  3. How to Use an LED Red Light Therapy Panel

How to Use

The product's functionality includes preset modes, custom modes, and features such as multi-device connectivity via a smartphone app.

start now

Quick Start Video

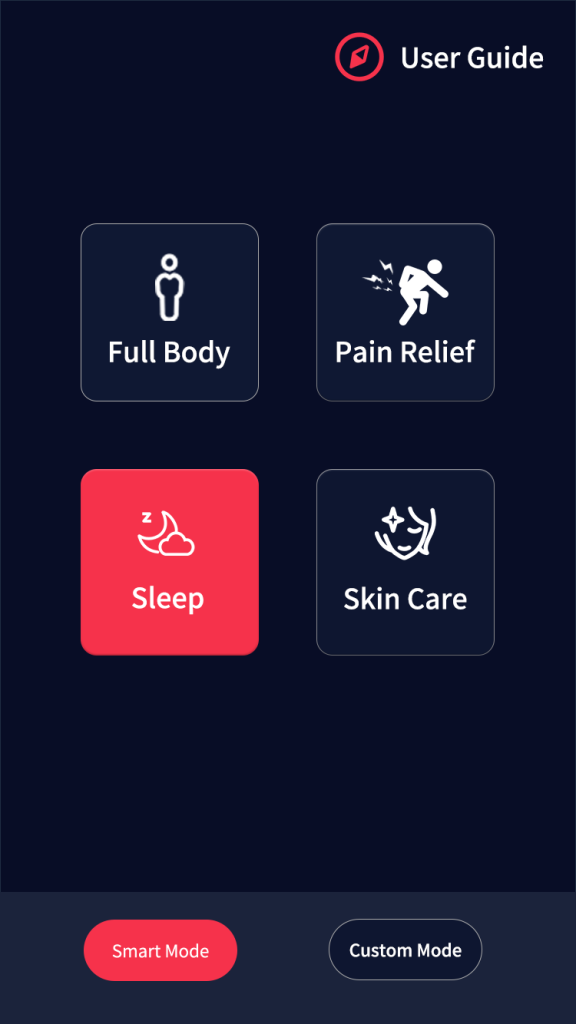

Preset Modes

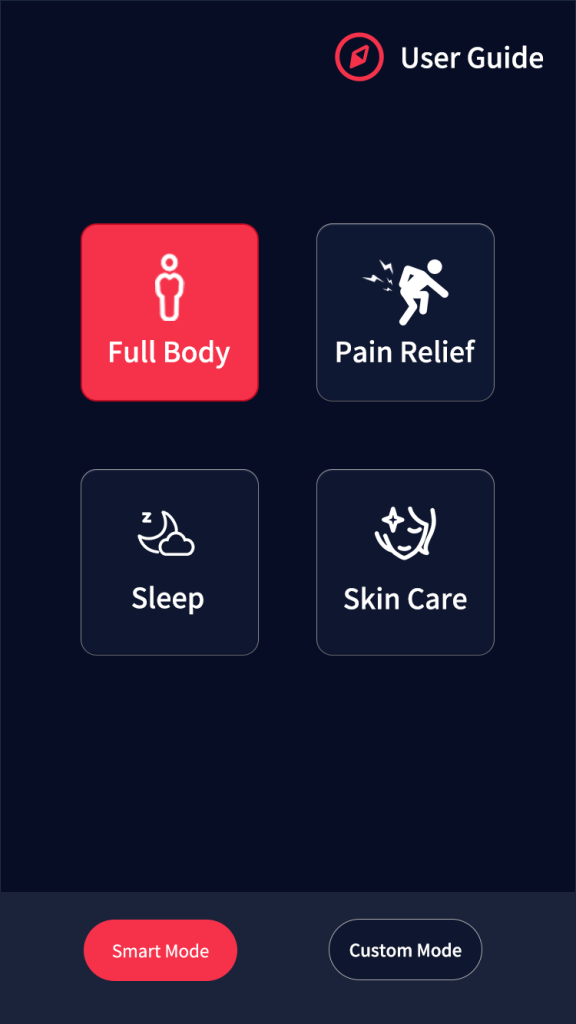

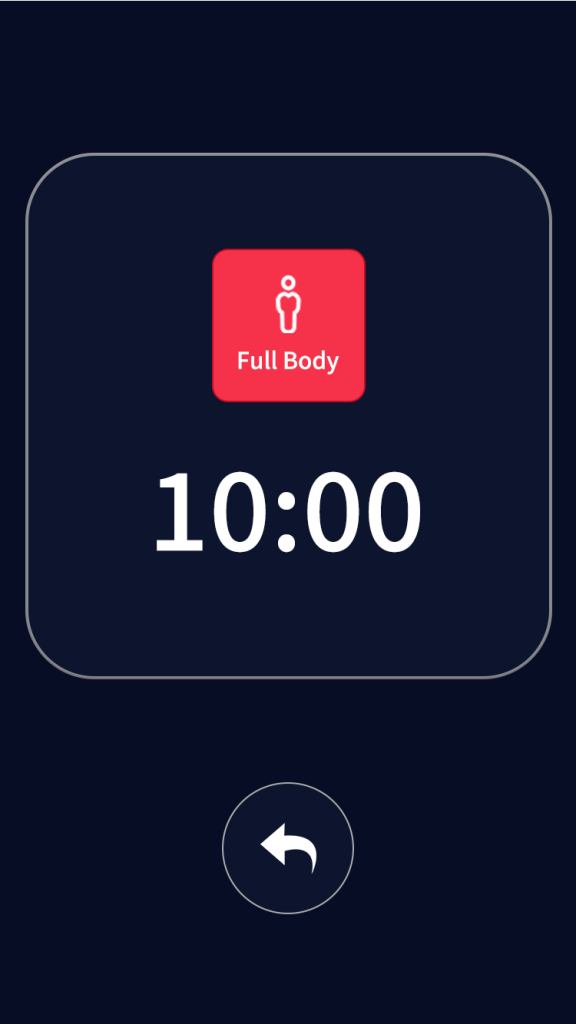

1. Full Body / Full Brightness Mode: This mode activates all lights at maximum intensity: both red light (633nm & 660nm) and infrared (810nm, 830nm, 850nm, 1060nm) operate at 100% brightness. It runs with a 10Hz pulse at a fixed, non-adjustable duration of 10 Minuten.

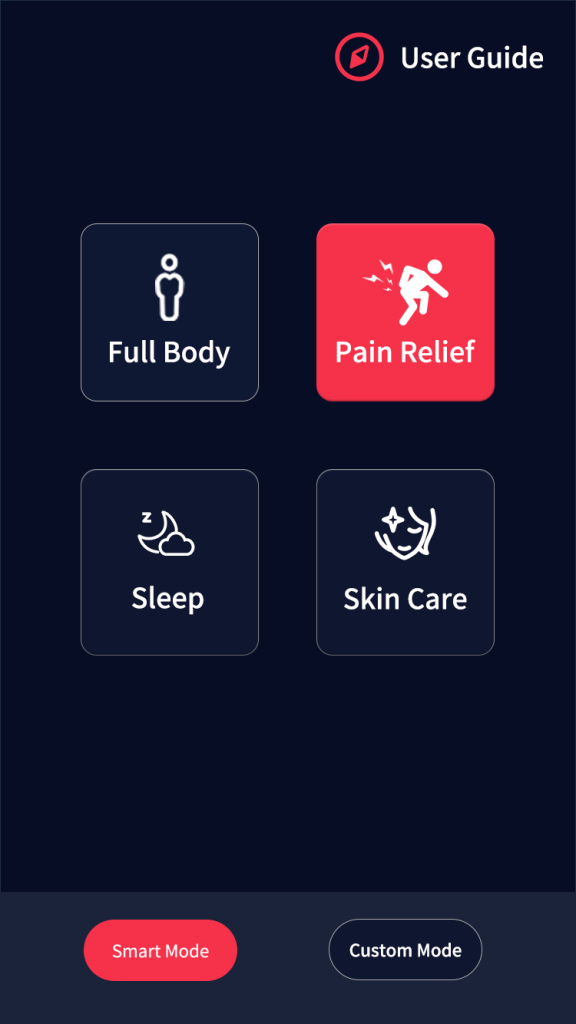

2. Pain Relief Mode: This mode combines red light (633nm & 660nm) at 50% intensity with full-power infrared (810nm, 830nm, 850nm, 1060nm) at 100% brightness. It operates at a 10Hz pulse for a fixed, non-adjustable treatment time of 10 Minuten.

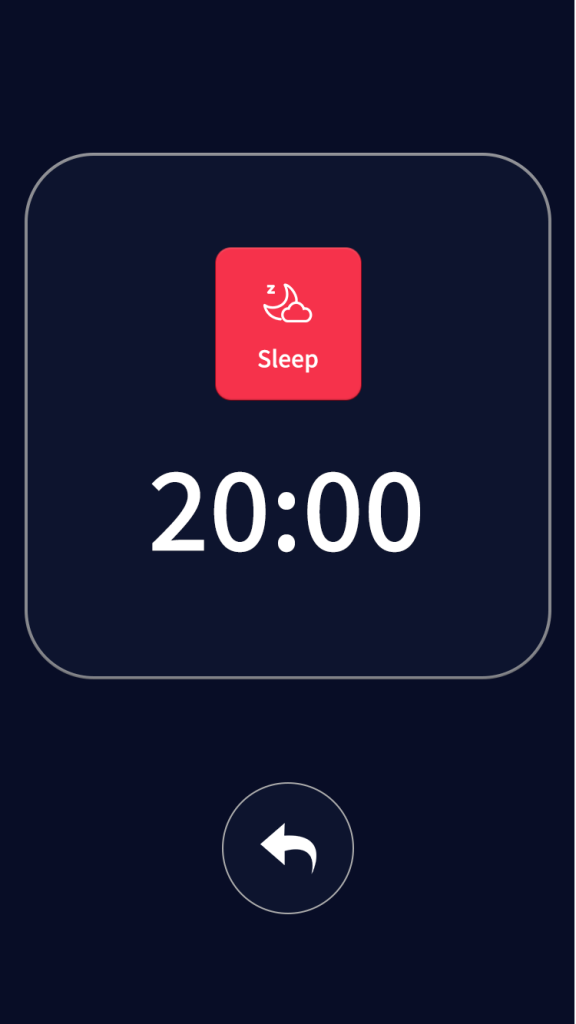

3. Sleep Mode: This mode utilizes very low-intensity red light (633nm & 660nm at 1%) combined with full-power infrared (810nm, 850nm, 830nm, 1060nm at 100%). It operates without pulse for a fixed, non-adjustable period of 20 Minuten.

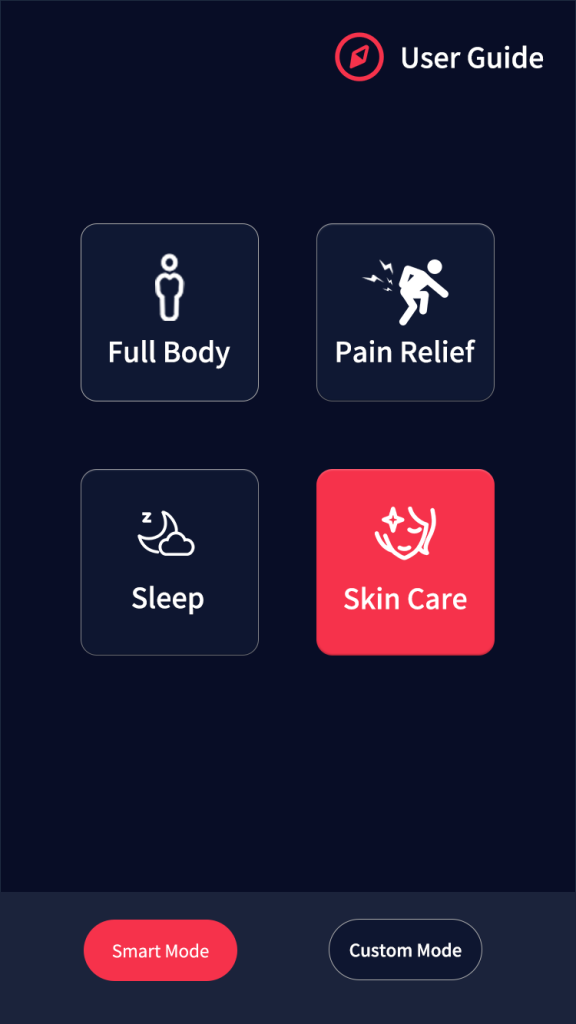

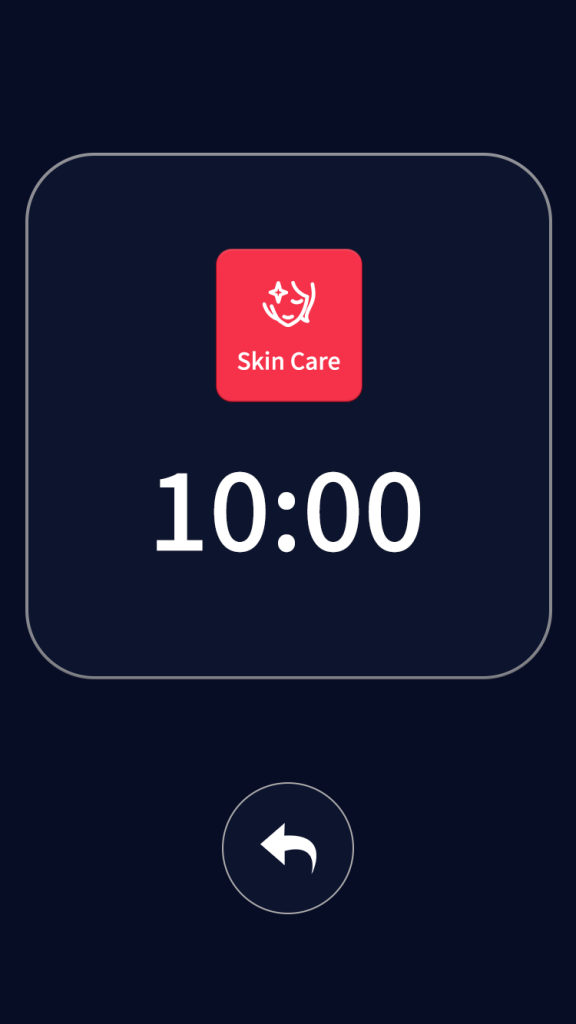

4. Skin Care Mode: This mode delivers full-intensity red light (633nm & 660nm at 100%) combined with specific infrared wavelengths (830nm & 1060nm at 100%). It operates without pulse for a fixed, non-adjustable treatment time of 10 Minuten.

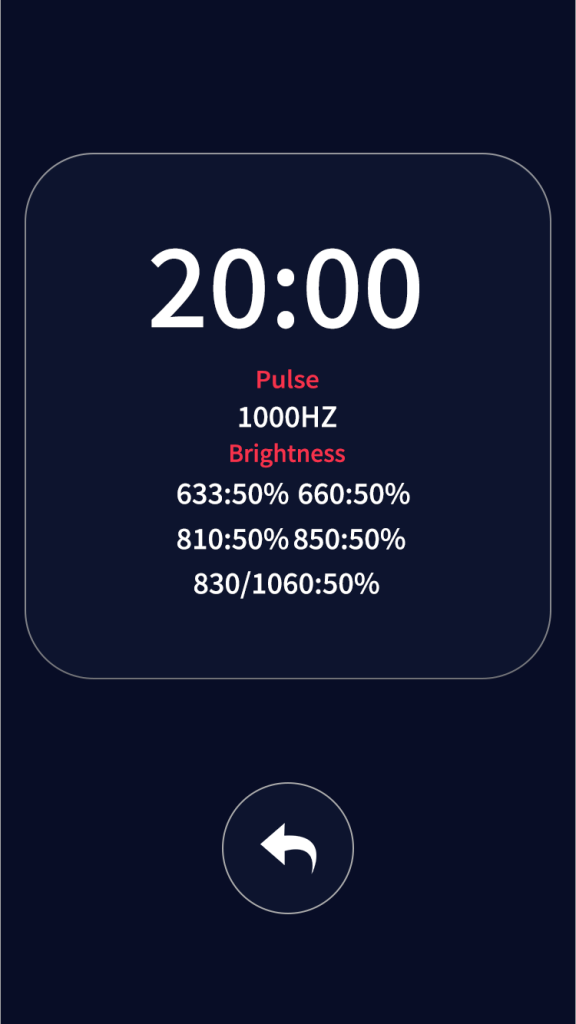

Custom Mode

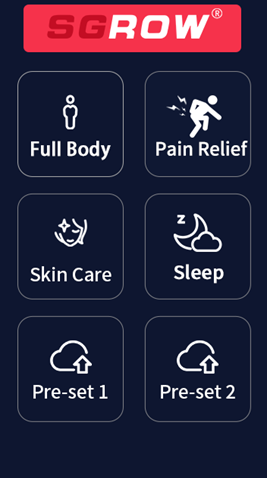

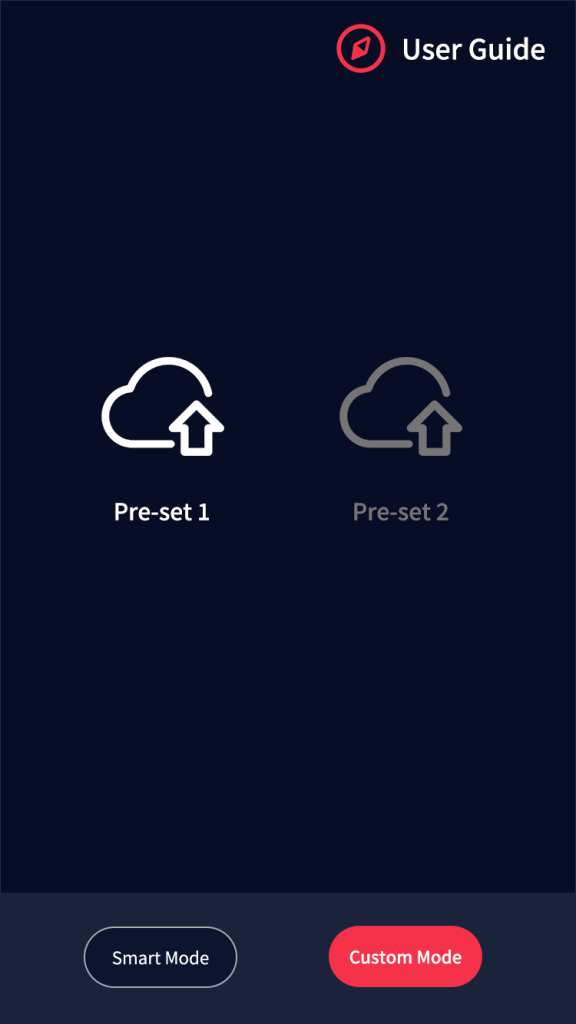

This mode allows you to set and save two personalized treatment configurations.

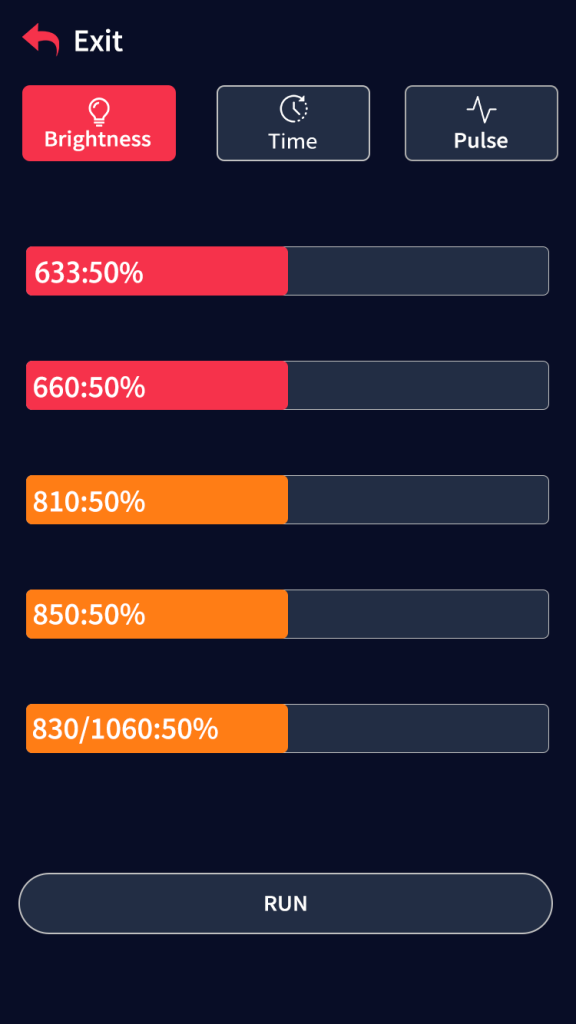

1. Brightness Adjustment

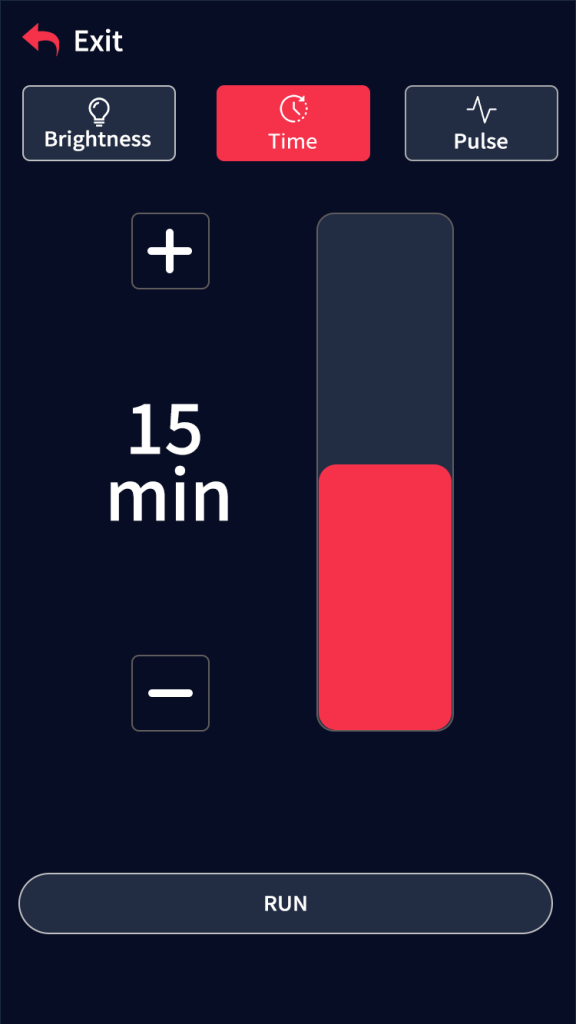

2. Timer

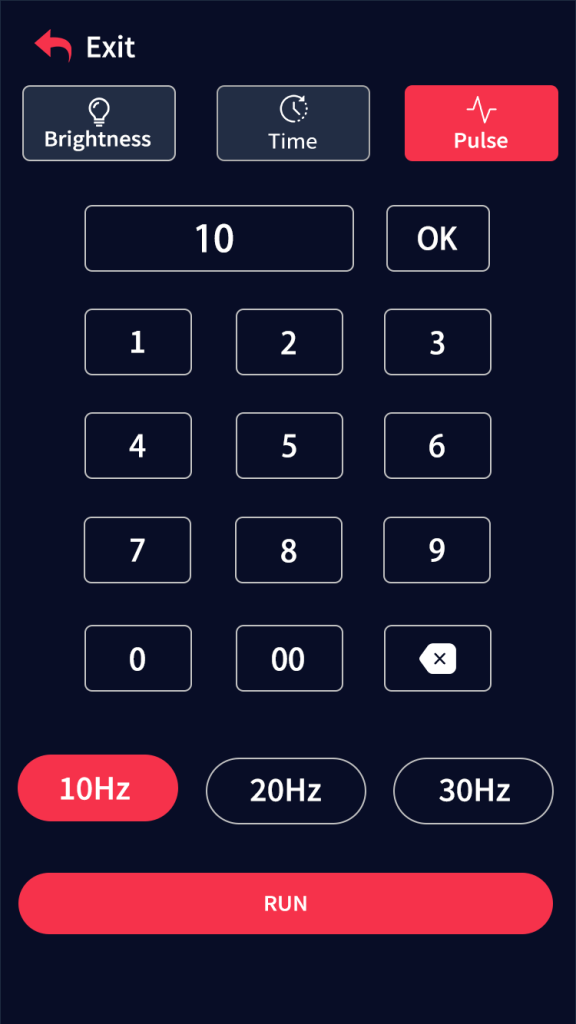

3. Pulse Function

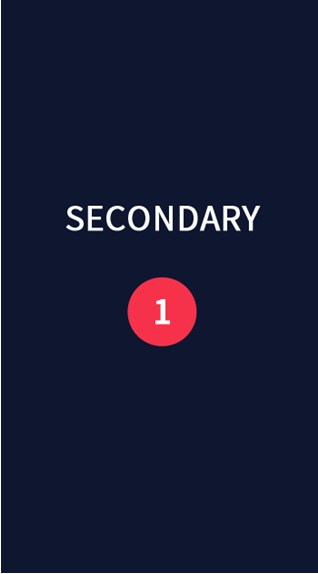

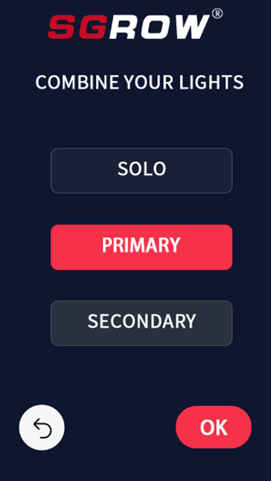

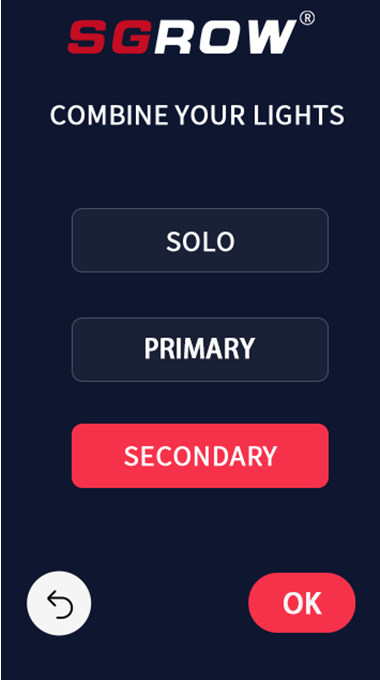

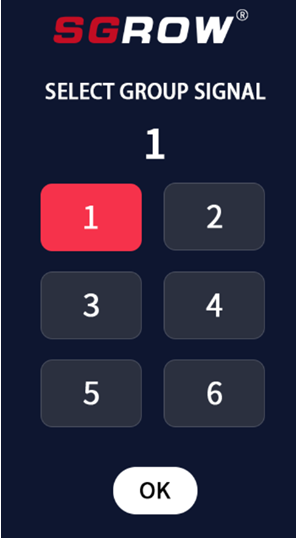

Multi-Device Operation Instructions
