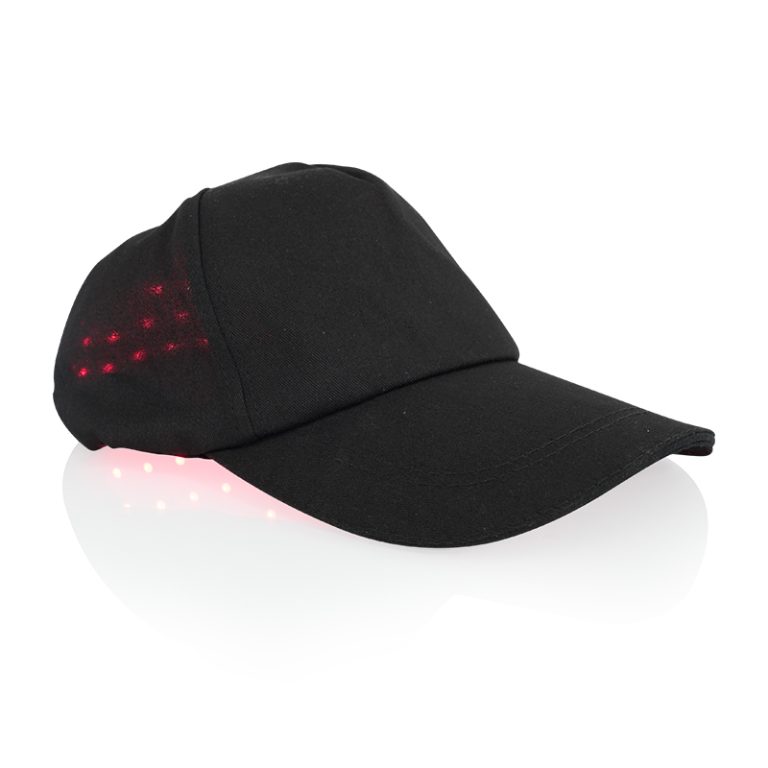

C02 LED Phototherapy Cap
The C02 delivers medical-grade phototherapy in a discreet wearable cap — a non-invasive hair restoration solution built for everyday use and seamless brand integration.
Key Features:

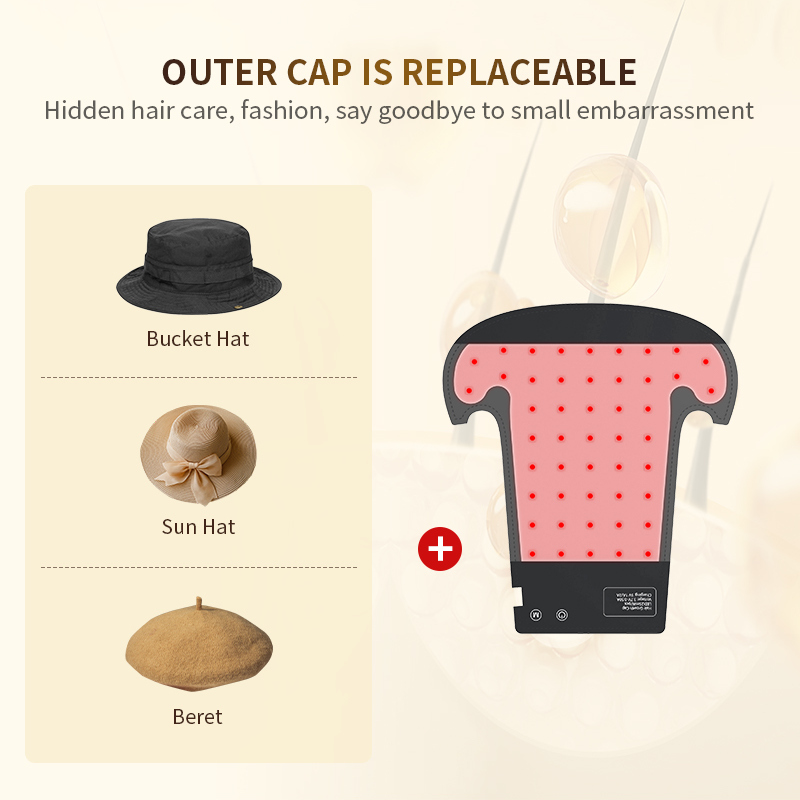

- Modular Detachable Architecture. The LED light pad operates independently and ships separately, enabling you to bundle it with any local headwear line.
- Triple-Wavelength 5050 LED Array. Tri-chip design delivers 460nm blue, 630nm red, and 850nm near-infrared light at a precise 1:1:1 ratio for comprehensive scalp phototherapy.
- 4 Clinical-Grade Phototherapy Modes. Pre-programmed protocols including a high-efficiency 10Hz Pulse Mode for deep follicle stimulation.

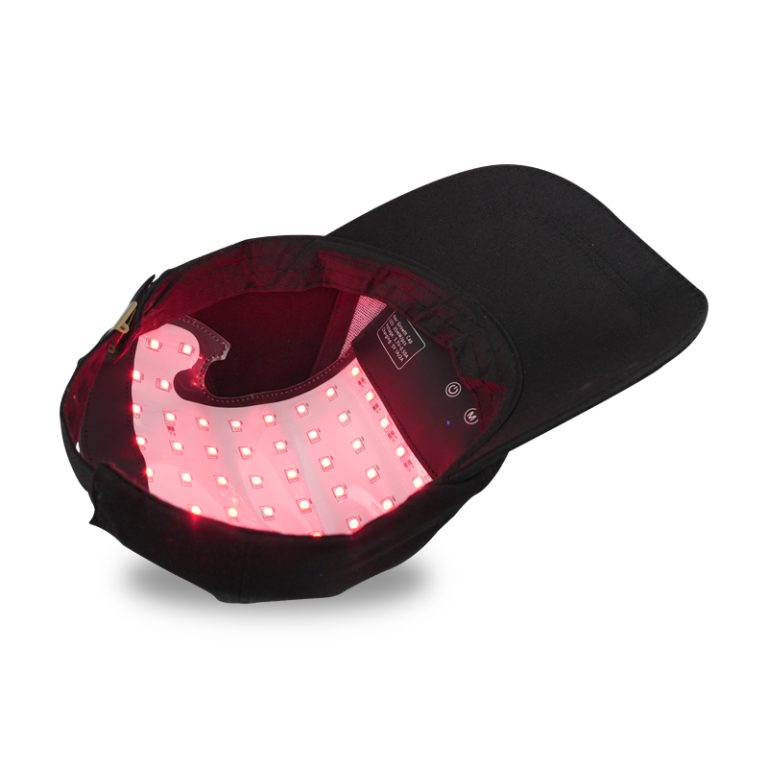

- Ultra-Lightweight, Ultra-Thin. The flexible FPC insert weighs 58g at just 3mm — virtually undetectable under any cap.
- Smart 10-Minute Auto-Timer. Pre-set for optimal daily exposure. Hands-free, no setup required.

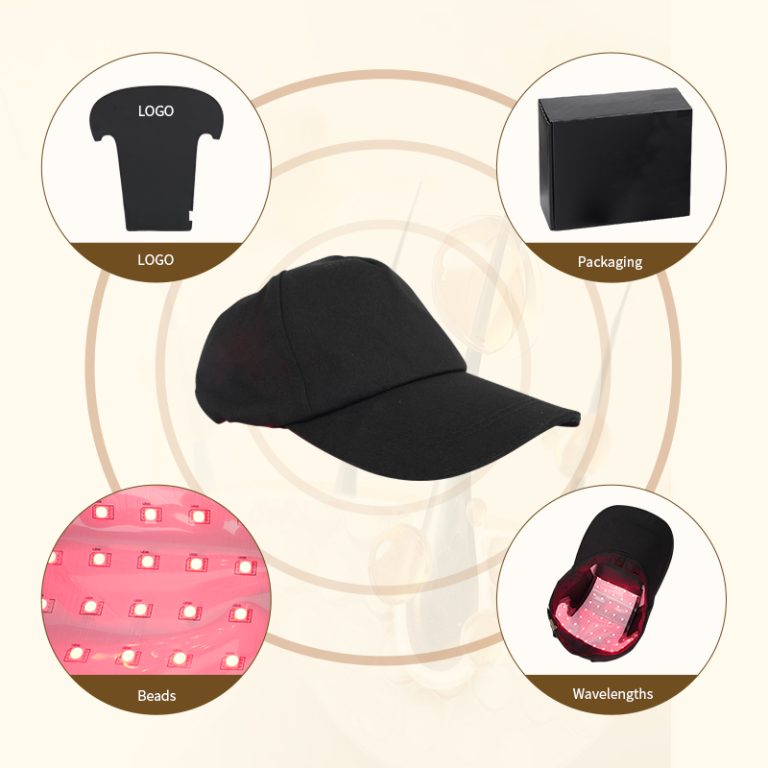

- Turnkey B2B Customization. Custom logos, premium fabric upgrades, and bespoke gift box packaging — full flexibility for your brand.
- Low Entry MOQ — 100 Units. Launch or expand your advanced haircare line with minimal upfront commitment.
Product Categories
Full Technical Specifications
| Item | Specification |
|---|---|
| Product Model | C02 |
| Product Type | Modular LED Hair Growth Cap |
| Composition | Baseball Cap + LED Hair Growth Device |
| LED Panel Size | 228 × 205 × 3mm (battery area 9mm), ±0.5mm |
| Weight | LED Device: 83.7g / Cap + Device: 162.1g |
| LED Beads | 5050 LED, 48pcs |
| Wavelength | 460nm : 630nm : 850nm = 1:1:1, ±5nm |
| Light Modes | Mode 1–4 (see above) |
| Timer | 10 minutes |
| Default Mode | Mode 1, 10-min timer |
| Battery | 650mAh, 603035, 3.7V Polymer |
| Battery Life | ≥60 min (max power) |
| Charging Time | ≤1.5 hours |
| Input Voltage | 5V / 1A |
| Irradiance | ≥25 mW/cm² |
| Charge Cut-off | 4.1–4.2V |
| Discharge Cut-off | 3.0V |
| Single Package | 495 × 120 × 60mm, ±0.5mm |
| Carton Size | 530 × 150 × 630mm |
| Carton Qty | 20 pcs/carton |
| Standards | IEC 60601-1 / -1-6 / -1-11 / -2-83 / -1-2 / IEC 62471 / IEC 60825 |
100% of study participants grew hair.
All clinical study participants experienced some level of hair growth – with an average of 43.2% hair growth.
In a 4-month double-blind clinical study performed by a board-certified dermatologist with 40 people, 100% of iRESTORE users saw improvement, with an average of 43.2% increase in hair count in 4 months.
Take our 30-second quiz. Get personalized solutions.
You’re unique. So is your hair. Hair loss isn’t one-size-fits all. Get a personalized recommendation and discover which solution is most suitable for your specific symptoms and hair loss type.
Widening Parts
Androgenic Alopecia
Thinning Crown
Thinning Temples
Bald Spots
Receding Hairline
Everything you need to know: Red Light Hat
Q: How does red light therapy help hair growth?
A：Increases Blood Flow: Facilitates better blood flow to the scalp by increasing microcirculation to hair follicles, addressing underlying factors contributing to hair thinning.
Reduce Hair Shedding: Promoting scalp health with red light therapy helps create stronger hair at the follicle, reducing shedding and thinning.
Q2: What kind of technology is in the hat?
A：The Pureluxtech Red Light Hat looks like a regular baseball cap, but has 120 diodes of red light that use FDA-cleared technology known to stimulate hair growth and improve scalp health. The cordless design makes it easy to integrate into any lifestyle and it only takes 10 minutes a day.
If I’m already experiencing hair loss, is it too late for me to start using red light therapy?
Red light therapy functions to revitalize thinning and dormant hairs. In cases of complete baldness on the scalp, promoting hair regrowth may not be possible. However, if you still retain hair follicles, red light therapy could prove beneficial for you.
Q3. Can I combine the Pureluxtech Red Light Hat with other treatments?
A: Yes, you can combine or you can use the Pureluxtech Red Light Hat on its own. Clinical trials have shown that red light therapy alone can stimulate hair growth and improve scalp health.
Q4. Did Pureluxtech do any testing?
A：Yes we did! See below results from our consumer test group:
100% of participants said the hat was easy to integrate into their daily routine*
93% noticed overall hair and scalp health improvements after 16 weeks*
86% of participants noticed hair growth after 16 weeks*
83% noticed hair growth in sparse or balding areas within 16 weeks*
100% of participants said they will continue to use the hat after the workshop ends*
*Based on a survey of 28 Red light hat users over a 16 week period.
Q5. Can I use the Red Light Hat on a daily basis?
A: Yes, you can use it on a daily basis! We suggest only 10 minutes a day, as this has been clinically studied in the past to be effective. Many trials have shown great results when used daily for 10 minutes a day, for 16 weeks and then regular maintenance sessions a few times a week after that.
Q6. How can I clean my Red Light Hat?
A: The red light panel is removable from the hat and stays in place with magnets. So you can remove the red light portion and spot clean. Allow to fully air dry before using again. DO NOT WASH THE RED LIGHT INSERT.
Q7. Is there anyone who should avoid red light therapy for hair loss?
A: Red light therapy is generally considered safe for most people. That said, individuals with photosensitive conditions, such as lupus, or those on medications that increase light sensitivity should consult a physician before starting treatment. Both experts I spoke to also stressed the importance of seeing a doctor if you are experiencing sudden or unexplained hair loss to rule out underlying medical conditions before trying any treatment.
Q8. How long does it take for red light therapy for hair loss to work?
A: Don’t expect a quick fix. Hair regrowth is a gradual process. “Patients typically need consistent red light therapy sessions for at least 3-4 months to notice reduced shedding, with visible improvements in hair density often taking 6 months or more,” says Palm. “Consistency is crucial, and combining therapy with other treatments may enhance results.”
